The devil makes the pots but not the lids.

il diavolo fa le pentole ma non i coperchi

The title of this post is the literal translation of a proverb. The proverb means that Devil’s pot of wickedness sooner or later will boil – and, as there’s no lid, someone will see its content and reveal the truth. That’s the old innocent idea that, finally, justice will prevail over evil… well, I like it so much I use it as title. Rather than devils, this post is actually about pots and lids – of molecular size, of course.

As that’s not a Masterchef contest at the nanoscale, let’s get rid of the pot for the moment, and call it ‘container’. In the nanoworld there are many such containers, which can be filled with molecules. In this way, you can produce new materials with applications in various areas of technology: from solar energy to sustainability and human health.

Our containers are named zeolites – porous materials which are commonly used as adsorbents and catalysts in various commercial, industrial, and even medical applications as well as in our everyday life.  Also, if you fill zeolites with dye molecules, you’ll get materials able to capture and transfer solar energy very efficiently. You would do it much easier if you first know how their pores look like.

In particular, how do their entrances appear to an incoming molecule? This question is our “step one”,  because this information is really hard to get from experiments.

step01

Fortunately, modeling comes to the rescue…. and that’s one of the reasons why I love so much doing #compchem (computational chemistry)!!

step02

Step 2 revealed that the channel openings expose hydroxyl groups, and look somewhat like this:

zeoliteLChannel
Entrance of zeolite L channel, showing the terminal -OH groups and the channel accessibility.

Those terminal hydroxils can be condensed with other molecules, carrying specific groups, hence new properties and functionalities. Among them, the possibility of “closing” the pores. Why is it so important?

Zeolites are resistant to heat and pressure, and act as a protective shield around the dye. But every “pot” needs a “lid”:  plugging the zeolite pore entrances, so that the dyes, once included, cannot escape into the environment, would further enhance their stability.  This has already been done experimentally,  by attaching at the channel entrances peculiar molecules nicknamed “stopcocks”. They consist of two “parts”:

  • the “tail”, which can penetrate zeolite pores;
  • the “head”, which is too big to enter the pore and remains outside, thus blocking (at least partially) the channel opening.

Two typical stopcocks, one with a small tail, and the other with a long, bulkier tail, are shown below.

stopcoc

Such “molecular stoppers” do indeed a great job in preventing molecules to escape from zeolites.  However, there were no clear ideas about how these stoppers were attached to the pore entrance, and how much space they occupied.  This knowledge would help finding better “lids” for our zeolite “pots”. How do we get it? Of course by modeling, as sketched in step 3 and 4.

step03

Here’s what we learned:

  • stopper molecules prefer to bind aluminum sites at the channel entrance;
  • the tail group always penetrates inside the pore, while the head stays outside;
  • the extent of blocking depends on the stopcock.
    In particular:

     – small-tailed stopcocks are like partially opened “lids” : no full closure                – bulky-tailed stopcoks behave like “corks”: full closure

So the zeolite pore may be fully sealed by one bulky stopper, like a molecular cork on a Prosecco nano-bottle. On the contrary,  one “lid” (small stopper) leaves our “pot” partially opened. Fortunately, there’s enough room to attach a second small stopper to the opening, that can now fully be closed.

And this brings us to step 5…

step05

… which could well be the end of this story, first told some time ago. Thank you for reading it!

Anyway, there’s an epilogue, which is perhaps the nicest part (“dulcis in fundo“).  Using such information, obtained from modeling, experimental colleagues recently trapped indigo (that’s, your denim’s blue) in zeolite L, and blocked the channel entrances with two small stopcocks. In this way, they made a new pigment, exceptionally resistant, with an amazingly beautiful blue color.  For me #compchemist, that blue was simply….. the color of happiness.

zeolite_channel_openings



For more information…



Understanding an efficient light harvesting material

When we fill porous materials with dye molecules of the right size, we obtain useful compounds for solar energy technology. These compounds can transfer solar energy efficiently because pores and channels fit to the dyes “like a glove”. In this way, molecules are forced to stay in line, and energy can easily pass from a molecule to the next one in the line. If we knew in detail the structure of the dye arrays, we’d have better chances to improve these compounds.

Unfortunately, the precise positioning of the molecules inside the pores is very hard to determine.  Recently, we solved this problem for a class of particularly efficient dyes filling the channels of zeolite L.  Key to success was diversity within the team, which favored the combination of multiple techniques involving both experiments and calculations.

The useful properties of these materials arise from the arrangement of dye molecules inside the porous host, which depends on the interactions among molecules and with the porous host. After this work, now it seems we understand a little better these complex materials. Indeed, our dyes are linear, symmetric and fit to the zeolite channels. Yet they adopt a slightly asymmetric positioning to maximize the interactions with the zeolite cations, which stabilize the compound.

Senzanome
Perylene-bisimide dye (cyan) in zeolite L (gray). The purple spheres represent the zeolite potassium cations

This work also suggests some possible ideas to improve these compounds by modifying either the porous container (the “host”) or the dye molecule (the “guest”). In my view, this is also a good example of how computational modeling may help to rationalize experimental results in apparent contrast with each other, yielding a consistent picture of a useful and intriguing material.

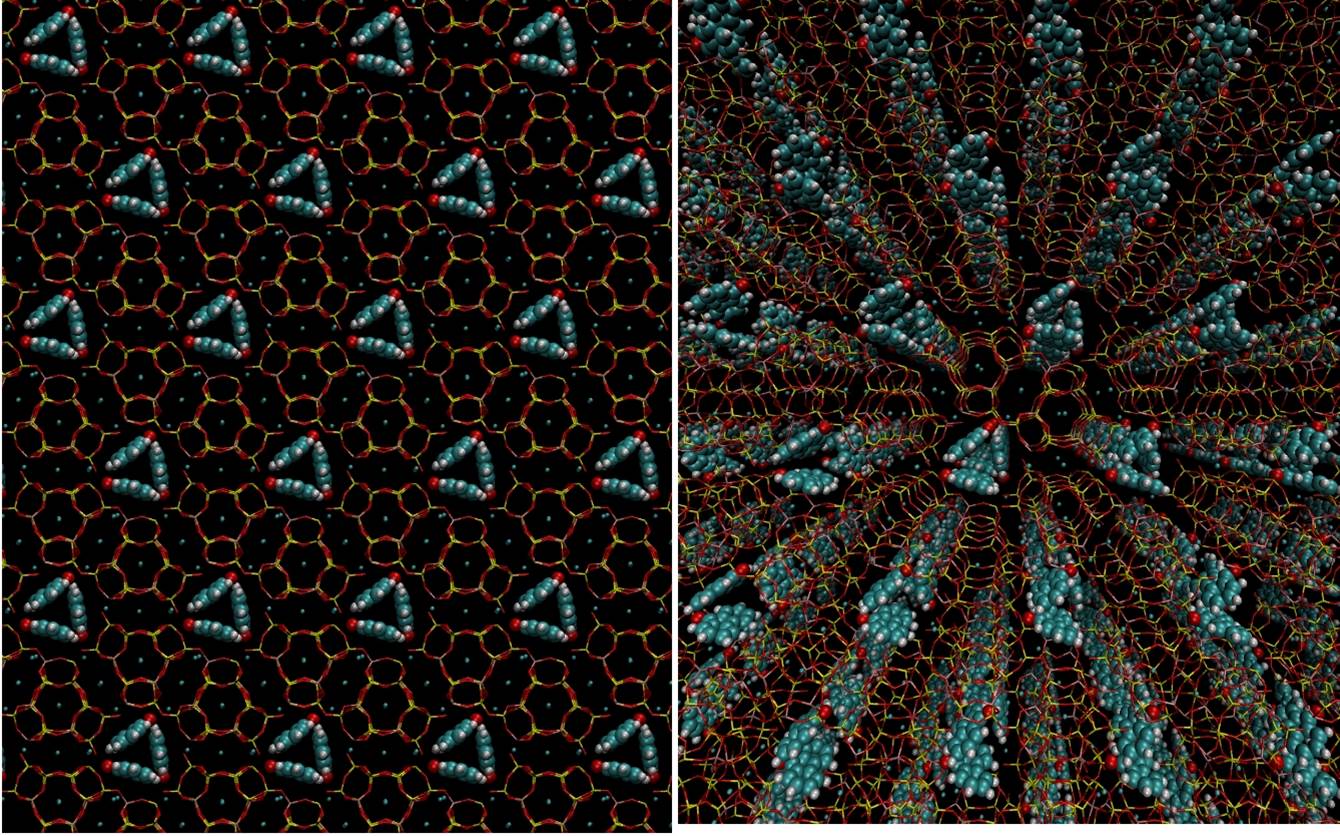

perylene

Gigli et al. (2018)  “Structure and Host–Guest Interactions of Perylene–Diimide Dyes in Zeolite L Nanochannels”  J. Phys. Chem. C 122, 6, 3401-3418

High pressure and small spaces create order from disorder

Our work on ethanol and water in ferrierite, published here and blogged in my previous post,  has been recently covered by MRS Bulletin in an excellent news article – “High pressure and small spaces create order from disorder”  by science writer Tim Palucka. Some time ago, I had a very pleasant communication with Tim about the main ideas and results of the paper. That interview also helped me a lot to understand how science communication is done professionally. The piece by Tim really does a great job in explaining the scientific background, the main findings and the perspectives of our research – and, of course, all of us are so happy about it!

MRS Bulletin contains other interesting news articles, which are very useful to get a first impression about what’s going on in the many diverse areas of materials science –  we’re very proud to be featured there! Big thanks, therefore, to MRS Bulletin and Dr. Palucka for the awesome coverage, and to Prof. Gion Calzaferri for commenting on our work as an external expert. A pdf version of the news article is freely available at MRS Bulletin (Volume 42, Issue 3, pp. 176-177, DOI: https://doi.org/10.1557/mrs.2017.38 ), while the illustration showing the arrangement of water and ethanol in the zeolite is just here below:
mrs_42_3_175-179-March17.indd

Many thanks also to my institution, @Uni_ Insubria, for issuing a piece on our research and sharing it on the social media. The Uni_Insubria release – including also an English translation, can be found at this Facebook link  (Italian version also at: Chemistry & Earth Science Department of Uni Modena-Reggio Emilia – that we thank as well).
